Forged Fitting

Rebolt Alloys is one among the best manufacturer, supplier and exporter of the forged fittings. We are providing the pipe fittings to the global clients in wide ranges. However, the pipe fittings are also available in various specifications. Some of the specifications in which they are available are dimensions, size, shape, surface finish, end finish, and many others. All the national and international quality standards are followed for manufacturing the pipe fittings. They are also available as per the expectations of the clients.

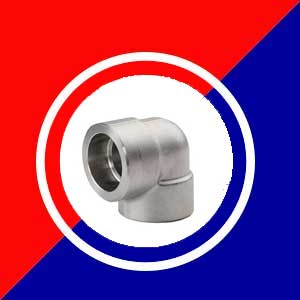

Forged Elbow

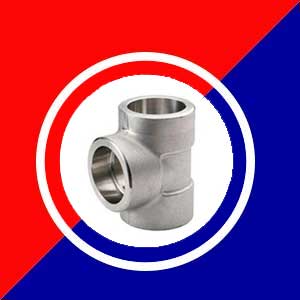

Forged Tee

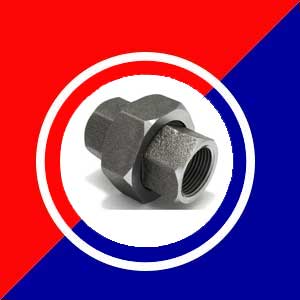

Forged Union

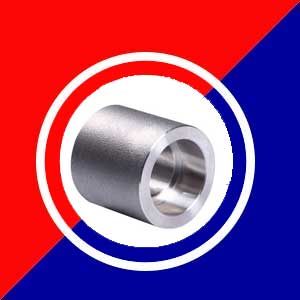

Forged Coupling

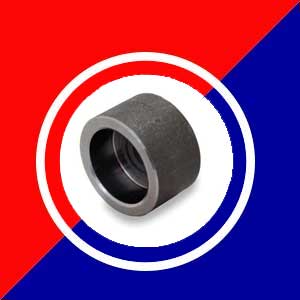

Forged Cap

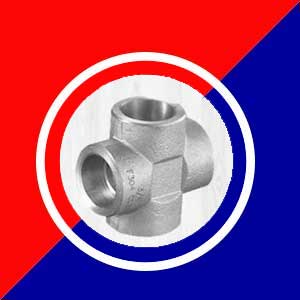

Forged Cross

FORGED FITTINGS SPECIFICATION

  • Specifications
  • :ASTM A182 / ASME SA182
  • Dimensions
  • : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799)
  • Size
  • : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
  • Type
  • :Socketweld Fittings, Screwed-Threaded Fittings
  • Class
  • : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
  • MATERIAL OF CONSTRUCTIONS

  • Stainless Steel
  • Grades : WP 304, 304H, 304L, 316, 316L, 316Ti, 310, 904L
  • Duplex / Super Duplex
  • Grades : UNS S31803, UNS S32205, UNS S32750, UNS S32760
  • High Nickel
  • Grades : Nickel UNS N02200 / N02201, Monel UNS N04400 / N05500, Inconel UNS N06600 / N06601 / N06617 / N06625 / N07718, Incoloy UNS N08800 / N08810 / N08811 / N08825, Hastelloy UNS N06022 / N10276 / N10665 / N10675, Alloy UNS N08020, Titanium Grade 2 (UNS R50400) / Grade 5 (UNS R56400), SMO 254 UNS S31254
  • Carbon Steel
  • Grades : F42, F46, F52, F56, F60, F65, F70, LF2, LF3
  • Alloy Steel
  • Grades : F1, F5, F9, F11, F12, F22, F91
  • Products

    Apllication Industries

    Oil Industry
    Gas Industry
    Sugar Industry

    Worldwide Supplier
